m3 Component Family

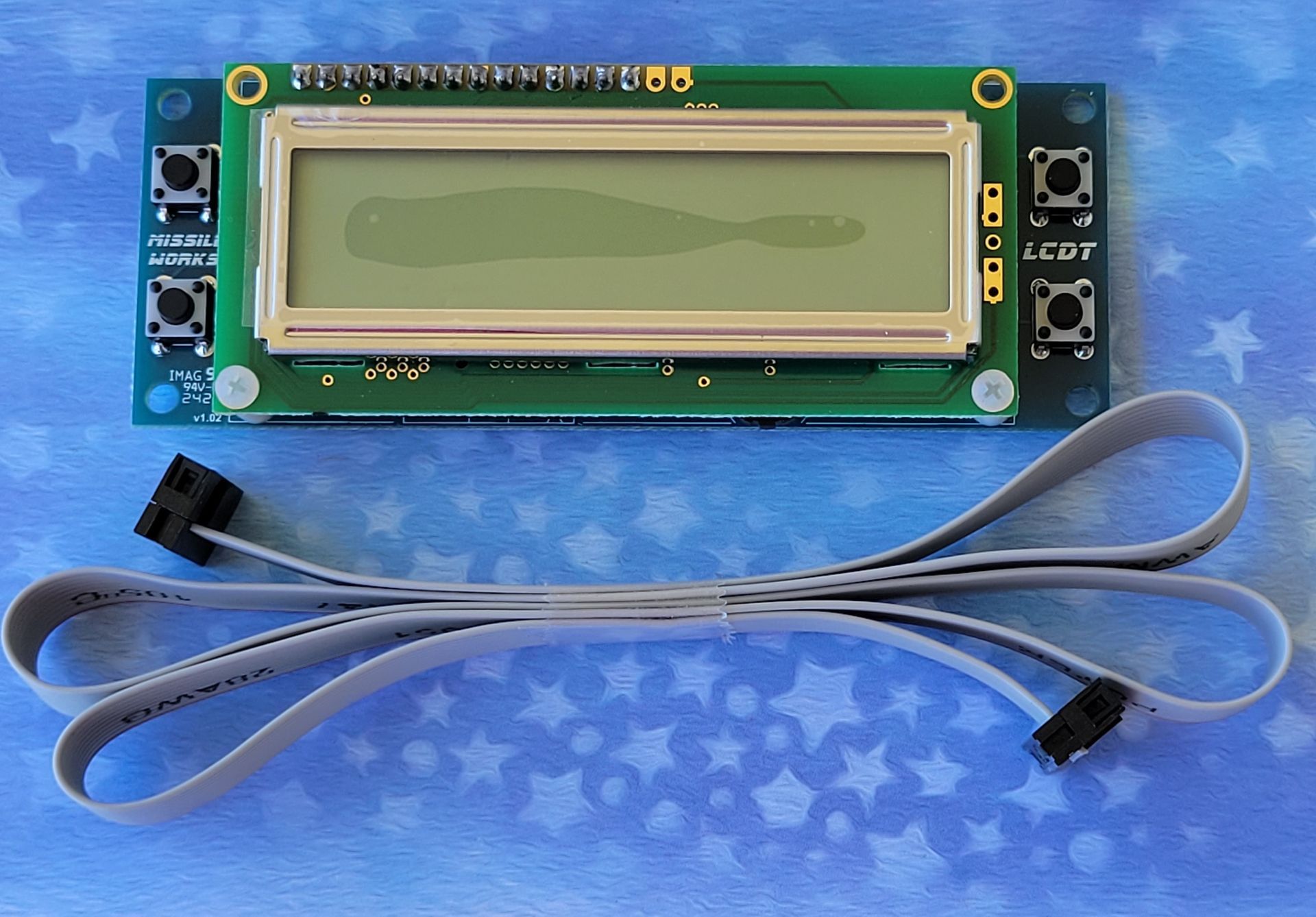

The LCDT (LCD Terminal) provides a handy way to interact with all RRC3's, RRC2L, and RTx Avioincs Systems.  The LCDT eliminates the need to bring a laptop PC and provides immediate text and icon based displays that can be used to configure, review flight data and perform diagnostics. The LCDT operates using the battery supply from the host device it's connected to.

Features
· 16 character / 2 line, High Contrast 5x7 Reflective LCD display module
· 4-button soft key interface with "one-click" tact switch navigation
· Adjustable Contrast knob
· 2' Modular 10-pin x 2mm IDC ribbon cable assembly

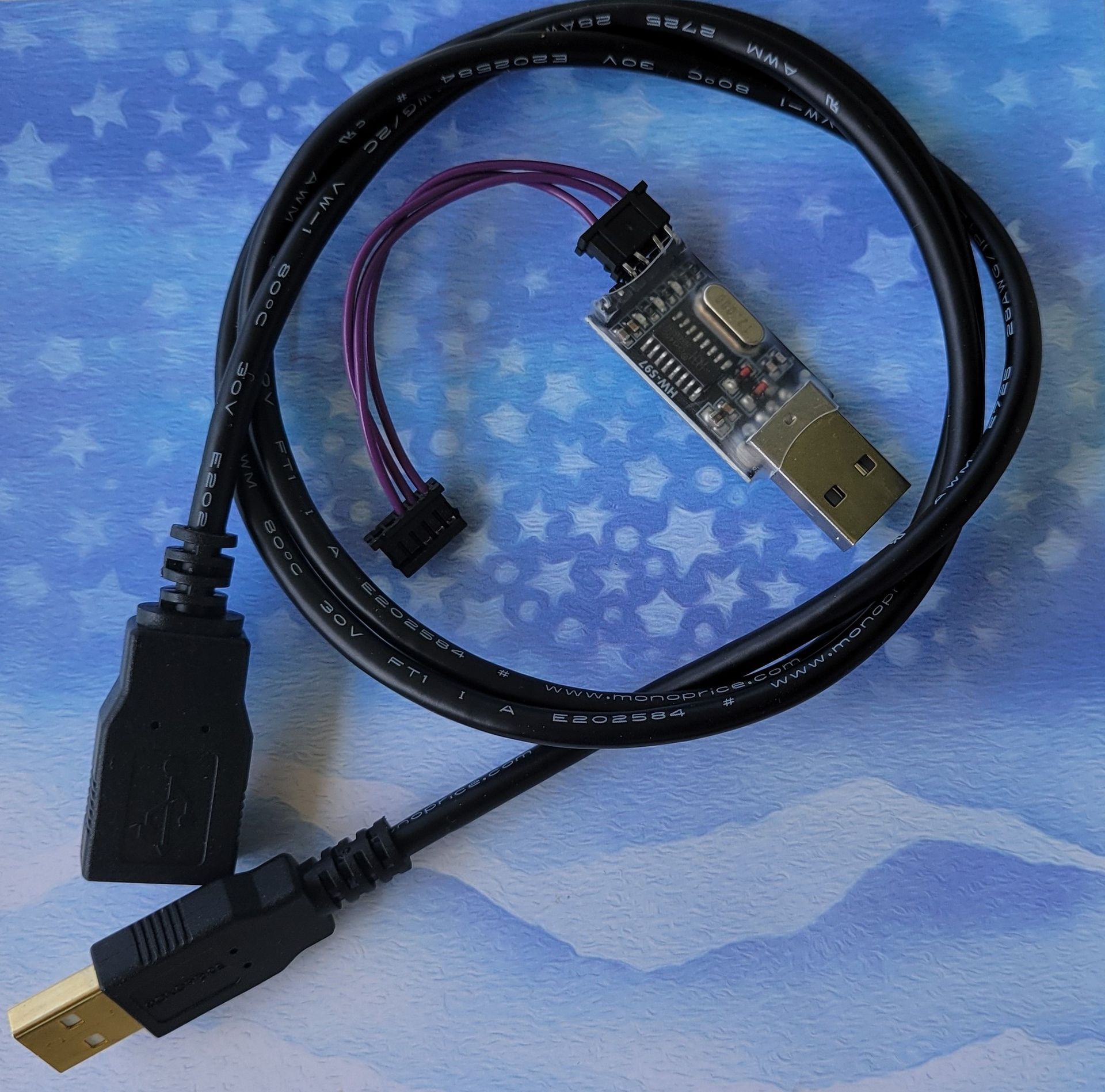

The UDC Interface provides USB interface capability and data transfer between the RRC3, RRC3+, RTx and a host computer. Use the USB IO with the mDACS Windows based application software to upload flight data, altimeter settings, and to perform flight simulations and detailed diagnostics. The USB IO can also provide the necessary logic power to your RRC3 altimeters for all data transfer operations, circumventing the need for an external battery or power supply to communicate with the altimeter.

Features
· 3' USB A extension cable assembly
· 4" Data Cable assembly (3 x 2mm x 24 AWG)
· Complete USB PCB (CH340)
· Diagnostic Power, TX, and RX LED's

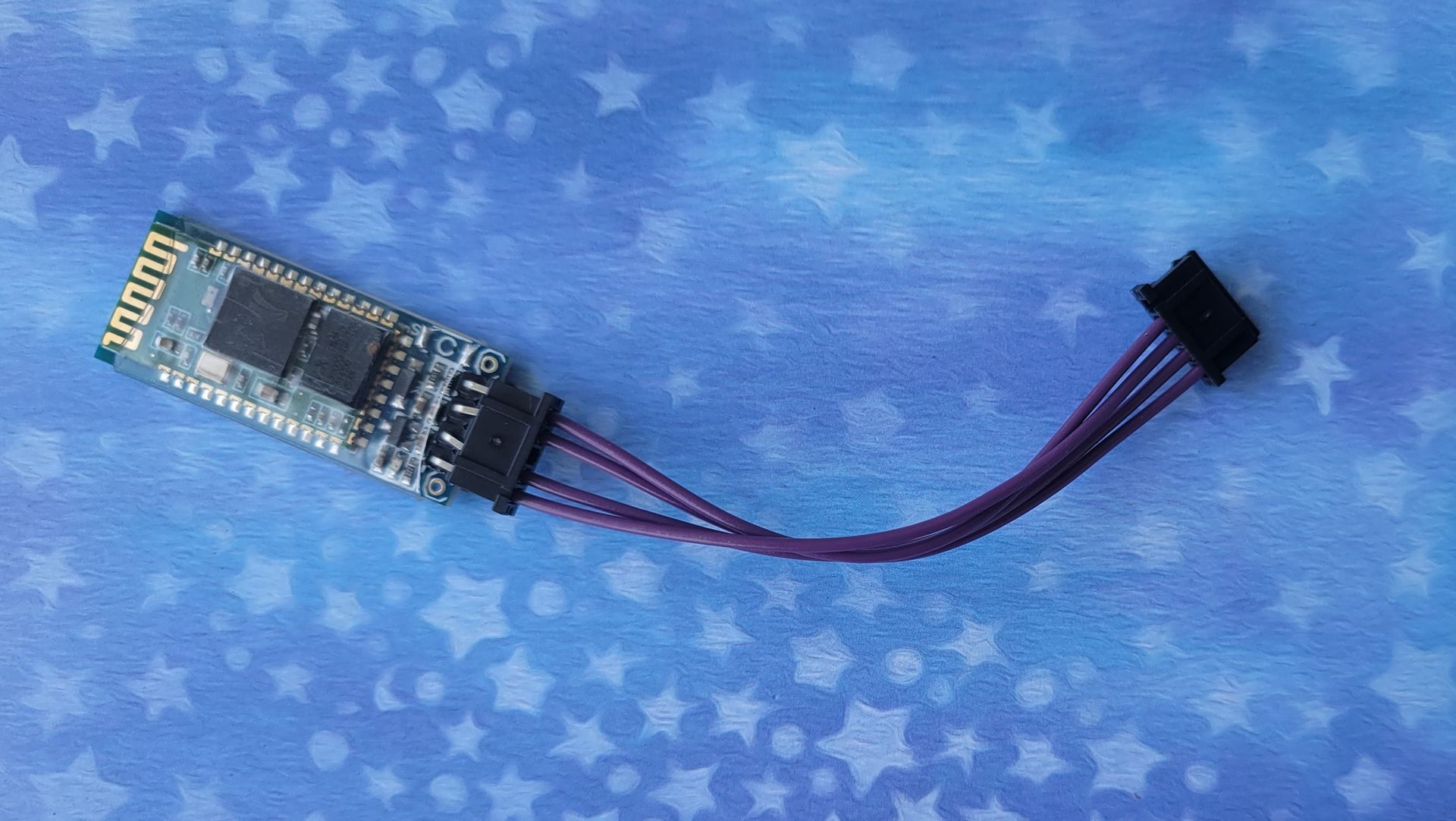

The Bluetooth Master Module provides wireless interface capability and data transfer for RTx and all RRC3 devices.  For RTx systems, this module will enable a wireless Bluetooth link to an Android device running an NMEA Locator app, or use it with your PC and mDACS for a wireless Host Link for mDACS.  For RRC3, the latest modifications to our v1.60/v1.70 RRC3 firmware and v1.60 mDACS app supports wireless communication to a Windows based PC running the mDACS app.

The RTx/RRC3 Bluetooth Master Module needs no additional power when connected to your RTx or RRC3 altimeter. Just plug into the 5-pin COMM connector and you're ready to go.

Features
3" comm/power cable assembly
Plug and Play ready for RTx/RRC3's
Diagnostic Connection LED
